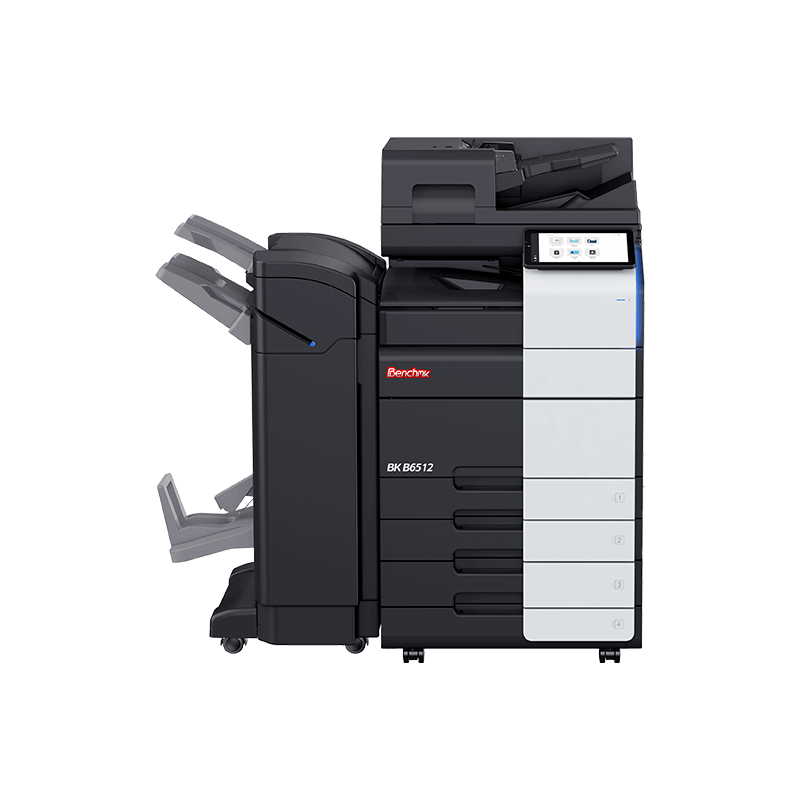

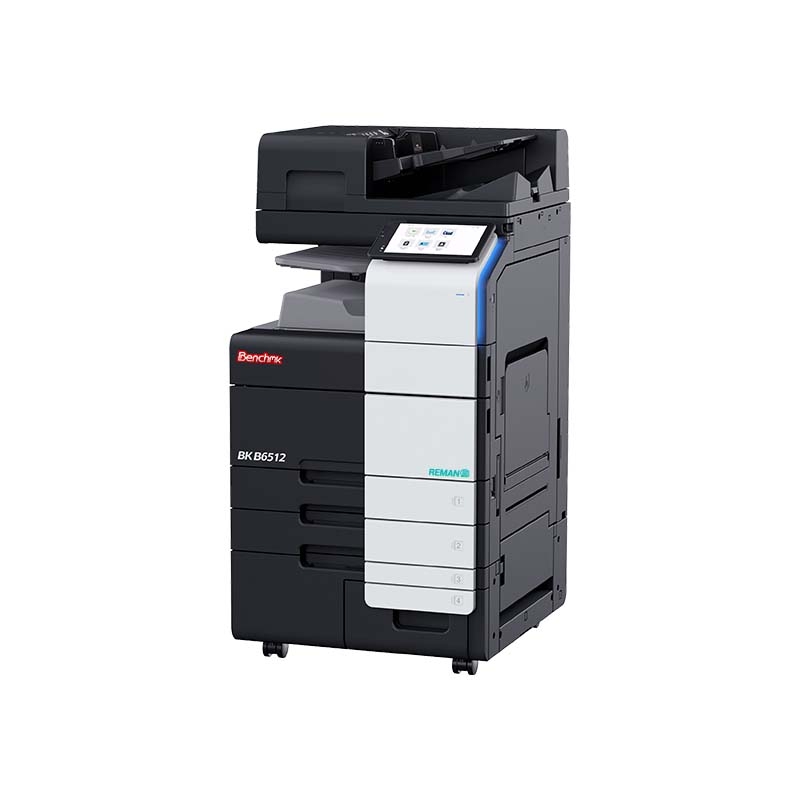

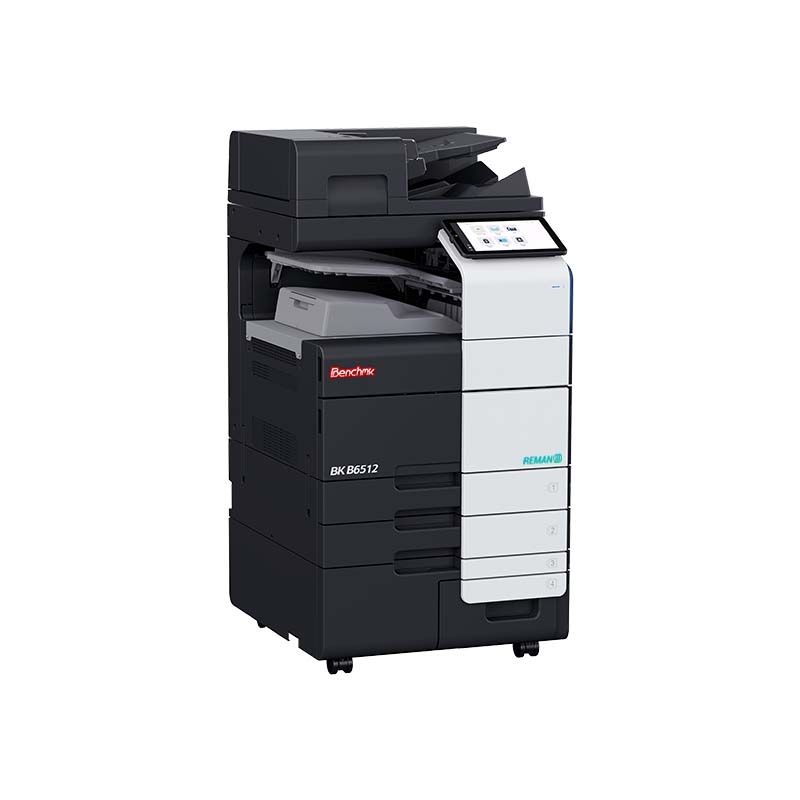

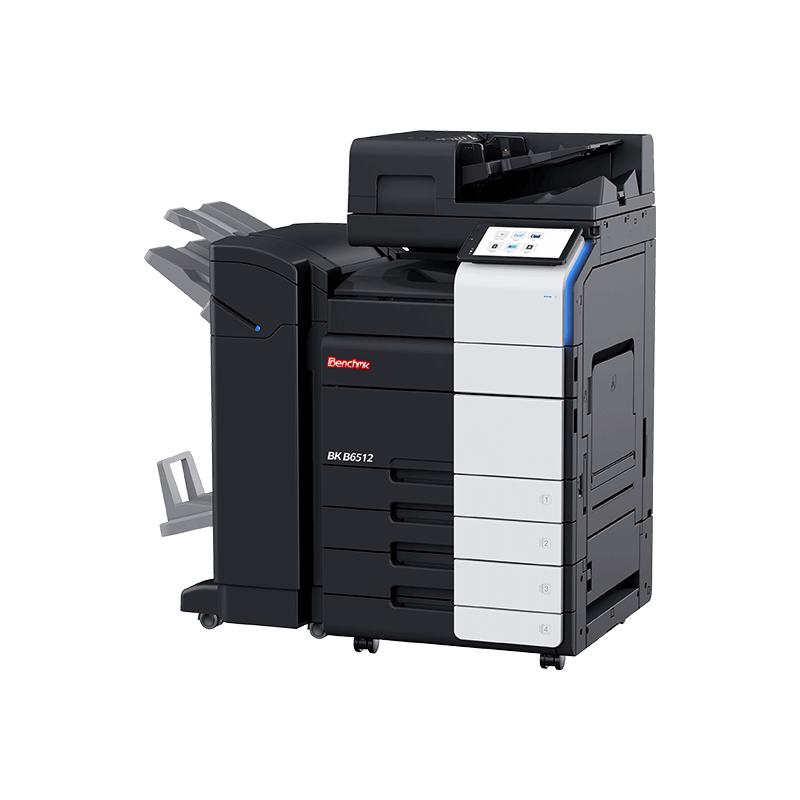

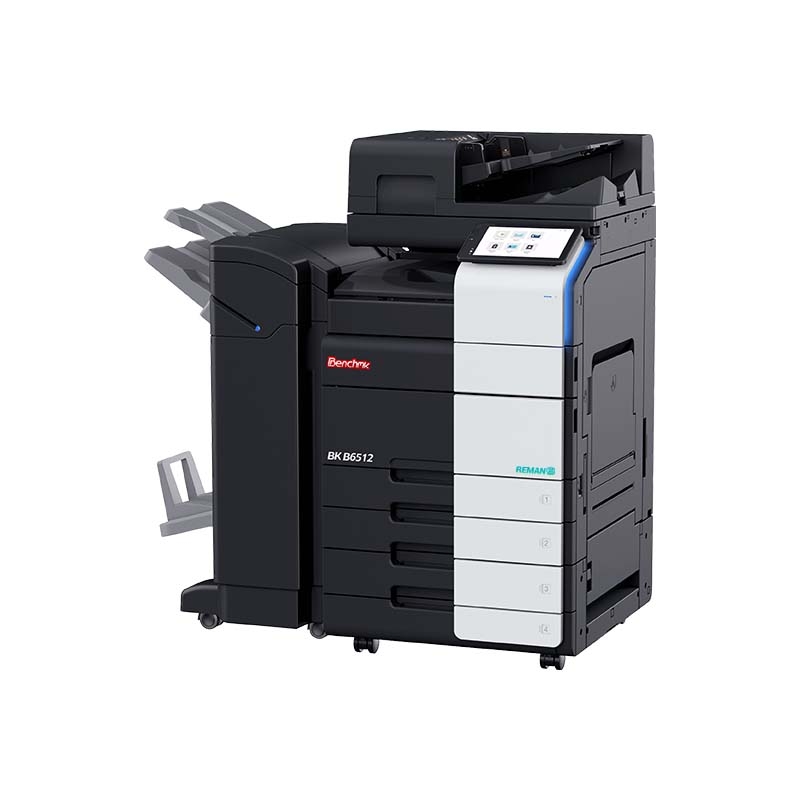

BK B6512 RefaB
  • •A3 Black and White Multifunction Printer

  • In

  • Sao chép

  • Quét

  • Fax

Download Manual
Details
Specifications





Main Specifications            ModelBK B6512
Device TypeBlack and White Multifunctional Device
Output Speed (A4 Paper, Landscape Orientation)            Black and White: 65 pages per minute
Copy FunctionIncluded
Print FunctionIncluded
Scan FunctionIncluded
Fax FunctionOptional
RAM Capacity (Standard)8 GB
Hard Disk Drive CapacityStandard: 256 GB, Optional: 1 TB
Automatic Document Feeder (ADF)Included
Duplex ModuleIncluded
Document FinisherOptional
Power Supply Requirements            AC 220-240 V (50-60 Hz)
Maximum Power Consumption            2.0 kW
Dimensions (Width x Depth x Height)            615 x 688 x 961 mm (with ADF)
Weight (kg)            98 kg (with ADF)

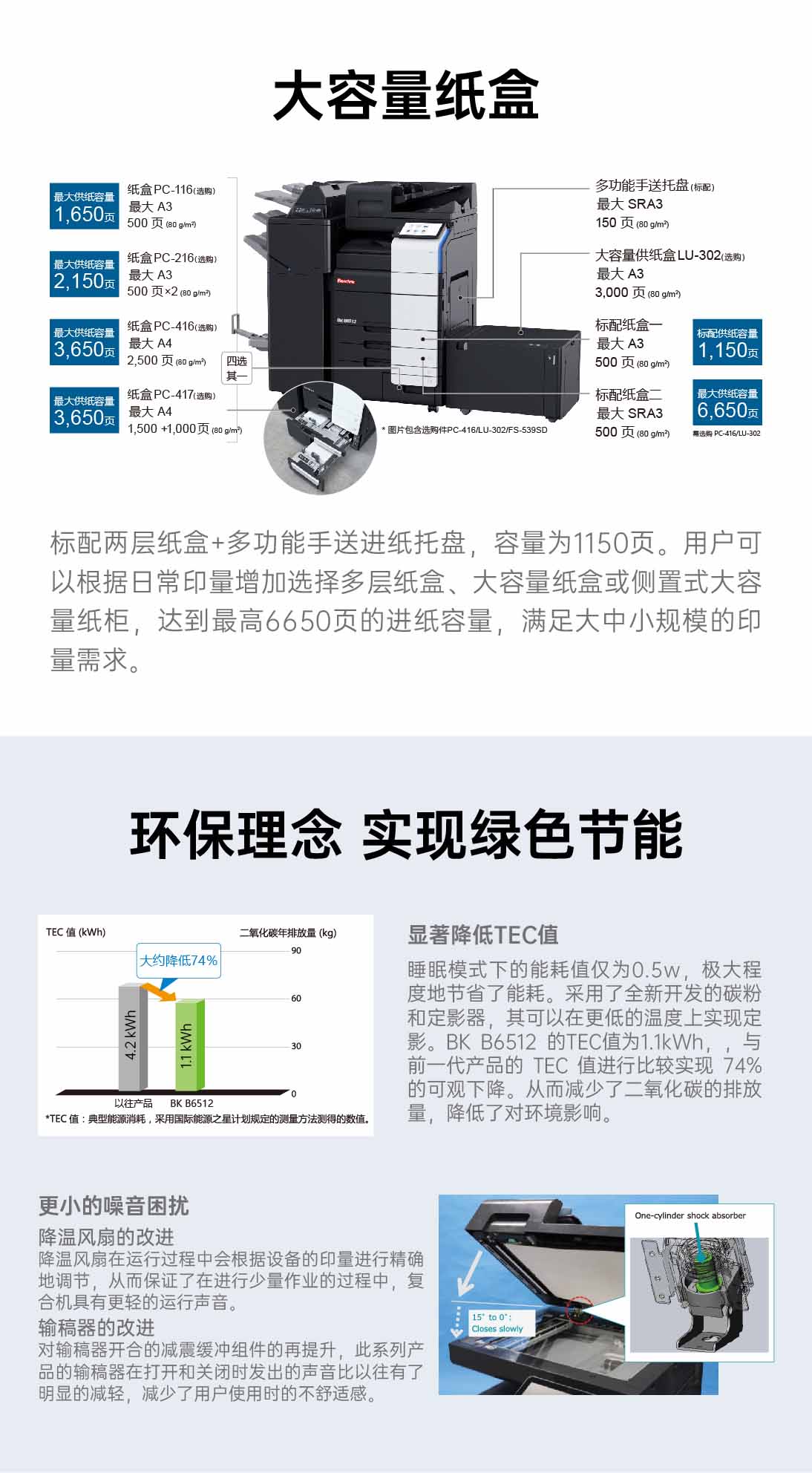

Copy Specifications            Paper Tray Capacity (Standard)1150
Paper Tray Capacity (Maximum*¹)6650
Warm-up Time (sec)17 sec
First Copy Out Time (A4 Paper, Landscape Orientation/sec)2.8 sec
Copy Resolution (dpi×dpi)Scanning: 600 x 600
Printing: 1800 (equivalent) x 600
Print Specifications            Print Resolution (dpi×dpi)1200 (equivalent)x1200, 1800 (equivalent)x600
Interfaces

Ethernet 10Base-T / 100Base-TX / 1000Base-T; USB1.1, USB 2.0 (included)

Wi-Fi (optional)
Print Languages (Standard)PostScript 3(3016); PCL 6 (XL Version 3.0); PCL 5e/c; XPS V1.0
Print Languages (Optional)None
Supported Operating Systems (PCL)

Windows 7/8/8.1/10/Server 2008

Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
/Server 2016/Server 2019 x64
Supported Operating Systems (PS)Windows 7/8/8.1/10/Server 2008
Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2012 R2
/Server 2016/Server 2019 x64
Macintosh OSX 10.10, 10.11 PPD+PED
macOS 10.12, 10.13, 10.14, 10.15 PPD+PED

PPD File: for Red Hat Enterprise Linux (CUPS v1.1.22)

FontsPCL: 80 fonts; PS: 137 fonts
Scan Specifications            Scan TypeColor Scanning
InterfaceEthernet 10Base-T/100Base-TX/1000Base-T
Scan Size400 dpi or lower: 297 mm x 1000 mm
600 dpi: 297 mm x 432 mm
Scan SpeedColor (Single-sided/Double-sided): 140/280 ipm (200 dpi)
Black and White (Single-sided/Double-sided): 140/280 ipm (200 dpi)
Scan ResolutionPush Scanning: 200/300/400/600 dpi
Pull Scanning: 100/200/300/400/600 dpi
Output Formats

TIFF, PDF, Compact PDF, JPEG, XPS, Compact XPS, pptx, docx*¹, xlsx*¹, Searchable

PDF*¹, PDF/A*¹, Linearized PDF*¹

Fax Specifications            Communication ProtocolsTX: SMTP, RX: POP3, TCP/IP Simple Mode, Full Mode
Transmit Document SizeA3, B4, A4
Fax Resolution (dpi×dpi)            Black and White: 200x100 / 200x200 / 400x400 / 600x600
Color: 200x200 / 400x400 / 600x600
Data Compression            Black and White: TIFF-F
Color: TIFF

*¹ Requires additional purchase for implementation
